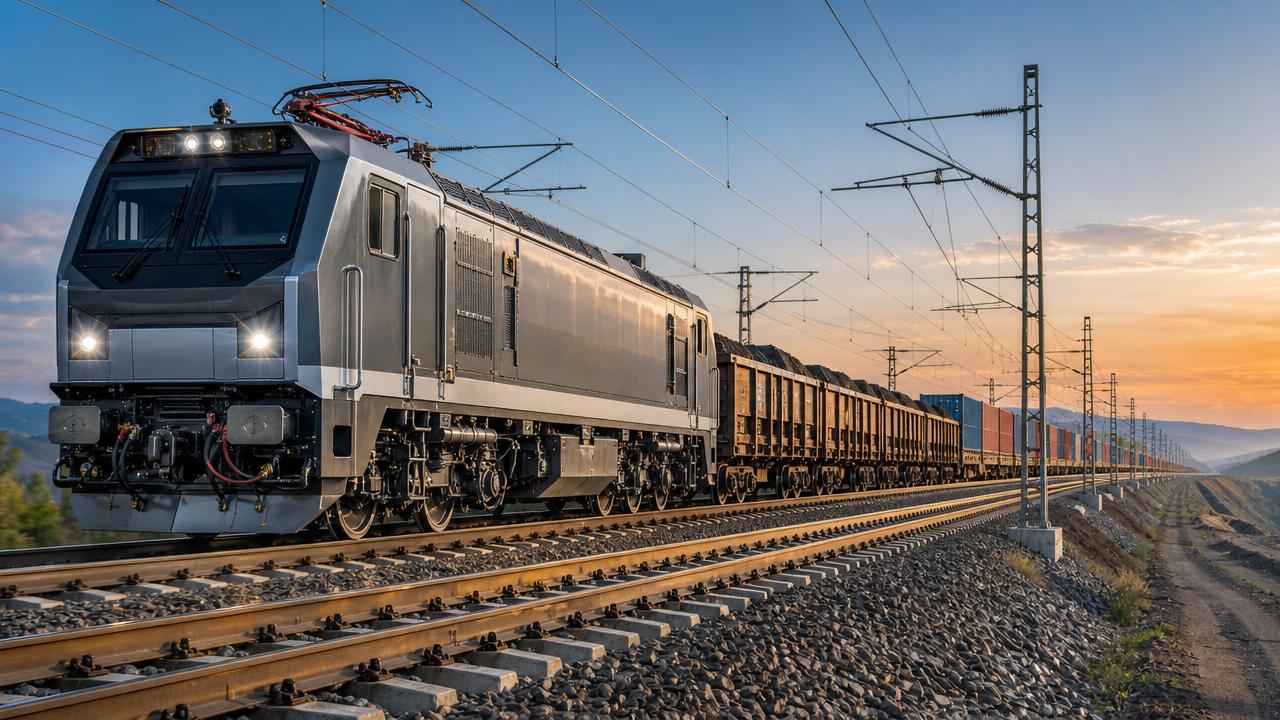

Locomotive Tractive Effort Benchmarks by Haulage Duty

For technical evaluators comparing motive power across freight profiles, locomotive tractive effort benchmarks provide a practical basis for judging startability, low-speed pulling force, and duty-fit performance. This introduction outlines how haulage duty, adhesion limits, axle load, and power-to-weight relationships shape benchmark values, helping rail professionals assess locomotive suitability for heavy-haul, mixed-freight, and corridor operations with greater accuracy.

In practice, benchmark assessment is rarely about one headline number. A locomotive with high continuous power may still underperform in starting a 10,000 t consist on a 1.2% ruling grade if adhesion management, axle load, and low-speed thermal limits are mismatched to duty. For technical teams working across procurement, fleet renewal, and corridor engineering, locomotive tractive effort benchmarks need to be tied to haulage duty, operating speed bands, train mass, and infrastructure constraints rather than compared in isolation.

Within international freight programs, this matters to railway authorities, EPC contractors, and rolling stock evaluators alike. Whether the project concerns heavy-haul mineral export lines, intermodal trunk corridors, or mixed-freight regional operations, the benchmark question is the same: how much usable pulling force is available at the wheel rim, for how long, and under what adhesion and thermal conditions? A structured answer supports more reliable selection decisions and reduces the risk of overpowered or under-capable fleets.

How Haulage Duty Defines Tractive Effort Expectations

Locomotive tractive effort benchmarks vary because haulage duty varies. A heavy-haul locomotive expected to lift 30 t axle-load trains from loading loops at 8–15 km/h operates under very different requirements from a mixed-freight unit handling 2,000–3,500 t consists at 40–80 km/h. The benchmark should therefore start with duty classification, not with nominal horsepower alone.

Startability, sustainment, and speed band

Technical evaluators usually separate three conditions: starting tractive effort, continuous tractive effort, and tractive effort available at target line speed. Starting tractive effort measures launch capability from standstill. Continuous tractive effort reflects what the traction system can sustain thermally at low speed, often in the 10–25 km/h range. Line-speed tractive effort indicates whether the locomotive can maintain schedule on grade once resistance rises and available force falls with speed.

For this reason, two locomotives each rated near 4,500 kW may differ materially in duty-fit. One may offer 500–600 kN starting tractive effort but only moderate continuous pull. Another may deliver a lower starting peak yet stronger sustained force over a longer speed window, making it better suited to long ascending corridors or frequent low-speed drag operations.

Typical benchmark ranges by freight profile

The table below summarizes practical locomotive tractive effort benchmarks used as screening ranges. These are not universal pass-fail values. They are evaluation bands that should be adjusted for rail condition, altitude, climate, coupler limits, and operational rules.

The key conclusion is that locomotive tractive effort benchmarks should be interpreted as duty windows. A 600 kN starting figure is valuable on a heavy-haul loading route, but it may offer little economic advantage on a corridor where track access, pathing, and terminal cycle time reward speed retention more than launch force.

Why benchmark errors occur

• Comparing starting tractive effort without checking the continuous rating at 10–20 km/h.
• Ignoring axle load limits such as 20 t versus 25–30 t infrastructure capability.
• Using dry-rail adhesion assumptions where wet or contaminated rail reduces usable force by 15%–30%.
• Overlooking ambient conditions, tunnel ventilation, and cooling performance in long low-speed climbs.

For evaluators, the practical remedy is to tie benchmarks to at least four duty descriptors: train mass, ruling grade, minimum launch speed, and target cruise speed. Once those are fixed, comparative analysis becomes far more meaningful.

Core Engineering Variables Behind Benchmark Values

A credible locomotive tractive effort benchmark rests on engineering limits at the wheel-rail interface and within the traction package. Adhesion, axle load, locomotive mass, traction control, and installed power together determine whether a benchmark number is merely theoretical or operationally repeatable.

Adhesion and usable wheel-rail force

At low speed, the first ceiling is adhesion. In simplified terms, usable tractive effort equals adhesive weight multiplied by adhesion coefficient. For freight locomotives, practical adhesion coefficients often fall within 0.25–0.35 under controlled conditions, though transient values may move outside that band. A 180 t six-axle locomotive therefore has a theoretical low-speed adhesion window broad enough to support high starting force, but only if creep control and axle-by-axle regulation are effective.

This is why axle arrangement matters. Co-Co locomotives typically dominate heavy-haul duties because they spread weight over six powered axles, increasing adhesive mass without overloading individual axle limits. On lighter infrastructure, however, the same concept can be constrained by route availability if axle load ceilings remain below 20–22.5 t.

Power-to-weight relationship

Power governs what happens after the train starts. Tractive effort decreases as speed rises, so a locomotive with strong starting force but insufficient power may struggle to accelerate a long consist beyond 25–35 km/h on grade. Evaluators should therefore review both kN and kW, plus the speed at which continuous power can be delivered without thermal derating.

For corridor operations, a power-to-weight ratio near 20–27 kW/t may be acceptable depending on service plan. For heavy low-speed drag service, the ratio can be lower, provided adhesion and cooling support sustained force. The benchmark target shifts with the duty rather than following one fixed ideal.

Benchmark variables evaluators should verify

Before accepting supplier data or internal fleet comparisons, technical teams should verify the conditions under which the benchmark was measured. The same locomotive tractive effort benchmarks can look materially different if one data sheet uses nominal wheel diameter, dry rail, and short-duration peak values while another uses worn wheel condition and continuous ratings.

A well-structured benchmark review should normalize these variables before comparing fleets. Without normalization, engineering teams may rank locomotives incorrectly and distort life-cycle planning, train handling strategy, or infrastructure upgrade priorities.

Selecting Benchmarks for Heavy-Haul, Mixed-Freight, and Corridor Operations

Different freight systems reward different performance traits. Technical evaluators should align locomotive tractive effort benchmarks with the economics of the route: bulk tonnage throughput, mixed-traffic flexibility, or corridor schedule reliability. The benchmark is therefore not only a mechanical measure but also a business-fit indicator.

Heavy-haul evaluation priorities

Heavy-haul lines typically prioritize launch capability, sustained low-speed force, and train handling stability over maximum line speed. If train masses regularly exceed 6,000 t and ruling grades sit between 1.0% and 1.5%, starting tractive effort above 500 kN and continuous tractive effort above 400 kN often becomes a relevant screening threshold. Distributed power compatibility may also be essential to manage in-train forces.

• Check low-speed thermal endurance over 20–40 minute climbing cycles.
• Verify axle load compatibility with 25 t, 27 t, or 30 t track design limits.
• Review sanding, creep control, and adhesion recovery performance.
• Assess coupler force management where long trains operate over undulating profiles.

Mixed-freight evaluation priorities

Mixed-freight operations require balance. Locomotives must start moderate-to-heavy trains, recover time after pathing delays, and remain efficient across changing consist weights. In this duty, locomotive tractive effort benchmarks should be paired with fuel or energy efficiency, adhesion at variable rail conditions, and availability targets over 30-day operating cycles.

A unit that delivers 350–420 kN starting tractive effort and 260–320 kN continuous force may be well positioned if it also supports reliable acceleration into the 60–90 km/h range. For shared networks, braking integration, signaling interface, and maintenance interval planning become just as important as the headline force figure.

Intermodal and corridor freight priorities

Intermodal corridors generally value schedule retention, terminal cycle efficiency, and higher average speed. Here, locomotive tractive effort benchmarks remain important, but evaluators may place greater weight on tractive effort at 40–80 km/h, regenerative or dynamic braking capability where applicable, and compatibility with ETCS, GSM-R, or equivalent corridor signaling frameworks.

The best corridor locomotive is not always the one with the highest starting figure. If a route has moderate grades, disciplined terminal operations, and train masses below 3,000 t, a locomotive with lower peak kN but stronger mid-speed power delivery may generate better asset utilization and timetable resilience.

A four-step benchmark selection method

1. Define duty envelope: train mass, grade, curvature, climate, and speed target.
2. Normalize supplier or fleet data to the same wheel, adhesion, and ambient assumptions.
3. Test benchmark suitability against worst-case launch and sustained climb scenarios.
4. Add operational filters: maintenance window, signaling integration, and route access limits.

This method helps evaluators avoid a common procurement error: selecting locomotives based on advertised force rather than duty-adjusted usable performance. In multi-country or intercontinental corridors, that discipline is especially valuable because infrastructure standards and operational rules often vary from one section to the next.

Implementation Risks, Review Checklist, and Procurement Guidance

Even when benchmark numbers appear strong, implementation risk can undermine fleet outcomes. Technical evaluation should extend beyond locomotive tractive effort benchmarks into infrastructure interaction, maintenance supportability, and control-system integration. A locomotive that fits the duty on paper but exceeds route loading limits or cooling margins can raise both operational and capital costs.

Common risk areas

• Benchmark data based on short-duration peak output instead of continuous duty ratings.
• Underestimation of adhesion loss during rain, leaf contamination, dust, or port-area deposits.
• Mismatch between locomotive mass and bridge, turnout, or secondary line restrictions.
• Insufficient maintenance capability for traction electronics, cooling systems, or wheel-slide control.
• Overlooking compatibility with train control, radio, and safety systems across corridor segments.

Technical review checklist for evaluators

The checklist below is designed for procurement teams, railway engineering units, and institutional reviewers seeking a disciplined way to compare offers. It combines mechanical, operational, and systems factors relevant to benchmark interpretation.

The main takeaway is that locomotive tractive effort benchmarks should be used as a gateway metric, not a standalone procurement decision. When combined with route engineering, signaling compatibility, and maintenance planning, they become a highly effective filter for technical shortlisting and long-term asset performance.

Where institutional benchmarking adds value

For organizations managing international rail-freight investment, benchmark quality improves when rolling stock analysis is connected to standards, corridor design, and operational policy. That is where a data-led technical platform can support decision-makers: by comparing locomotive performance against infrastructure, signaling, and freight mission requirements in one review framework rather than in separate silos.

A more rigorous benchmark process reduces the chance of selecting locomotives that are too light for heavy-haul tonnage, too heavy for branch infrastructure, or too optimized for low-speed drag when corridor speed retention is the stronger business driver. In each case, the cost of mismatch can extend across 15–30 years of asset life.

For technical evaluators, the most useful locomotive tractive effort benchmarks are those anchored to actual duty: launch mass, ruling grade, adhesion condition, axle load, and target speed range. When those variables are normalized, benchmark numbers become far more reliable for comparing heavy-haul, mixed-freight, and intermodal fleets.

G-RFE supports this type of evidence-based assessment by connecting locomotive performance analysis with freight corridor engineering, signaling frameworks, and international railway standards. If you need a more precise benchmark methodology for procurement, fleet renewal, or corridor planning, contact us to discuss your operating profile, request a tailored evaluation framework, or learn more about sector-specific rail engineering solutions.
